Transverse Reactions

Table tb2DReactions

PURPOSE

This table is used for entry of reaction loads computed from a logitudinal analysis.

Parameters

tb2DReactions

Field	Type	Units	Description
Type	text		[Dead|S_DC|S_DW|Truck] Load Type
LaneTypeName	text		If type=Truck, name for this lane type.
TruckReaction	real	KIP	Reaction from Truck (given without IMPACT; IMPACT will be applied by Bridg)
UniformLoadReaction	real	KIP	Reaction from uniform lane load (given without IMPACT; NO IMPACT will be applied by Bridg)
Stage	int		Stage to apply Dead,Sdead or PS load.

• Type

  Enter key word:

  DEAD for dead loads.

  SDL for superimposed dead loads.

  S_DC

  S_DW

  TRUCK for un-factored truck live load.

• LaneTypeName

  If reaction type is TRUCK then this name corresponds to a lane type referenced in the 2DTLoadCombDef. ( Transverse Load Combinations )

• TruckReaction

  Reaction from Truck (given without IMPACT; IMPACT will be applied by Bridg)

• UniformLoadReaction

  Reaction from uniform lane load (given without IMPACT; NO IMPACT will be applied by Bridg)

• Stage

  If the load type is DEAD, then enter an option stage for applying the load. If left blank or zero, the last dead load stage will be used.

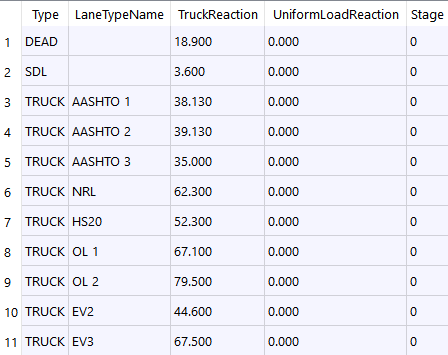

Example
