Transverse Transfer Model

Table tb2DTransferModel

PURPOSE

Use this entry table to define the locations where the intermediate transverse model has supports that will be the load locations on the cross beam For a continuously supported condition, use a spacing of 1 foot with a duplicate value sufficient to place supports across the beam.

Use more then one entry for spacing that is not consistant.

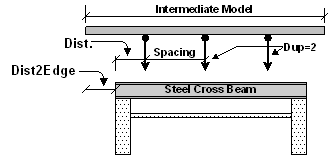

image/tb2DTransferModel_2.png

Dist2Edge: Distance from left edge of Floor beam to left edge of slab (transfer model). If slab edge is to left of FB edge then negative distance. Example shown above is a negative distance.

Parameters

  • Dist (feet)

    Enter distance from the left edge of the cross beam to the support location. The 2DT parameter “Dist2Edge” will be used to position this support on the intermediate model.

  • Space (feet)

    Enter distance between duplicates.

  • Duplicate

    Enter number of times to duplicate the support / loading location.

Example

image/tb2DTransferModel.png
