Input Cover Plate Placement
Table tbCoverPlateDef
PURPOSE
Add cover plates to stringers.
Parameters
Field |
Type |
Units |
Description |
|---|---|---|---|
MbrLine |
text |
Member line name |
|
StartDist |
real |
FET |
Distance from start of member line |
EndDist |
real |
FET |
Distance from start of member line to end of this shape placement. (Entry optional) |
Plate |
text |
Plate Library table name |
|

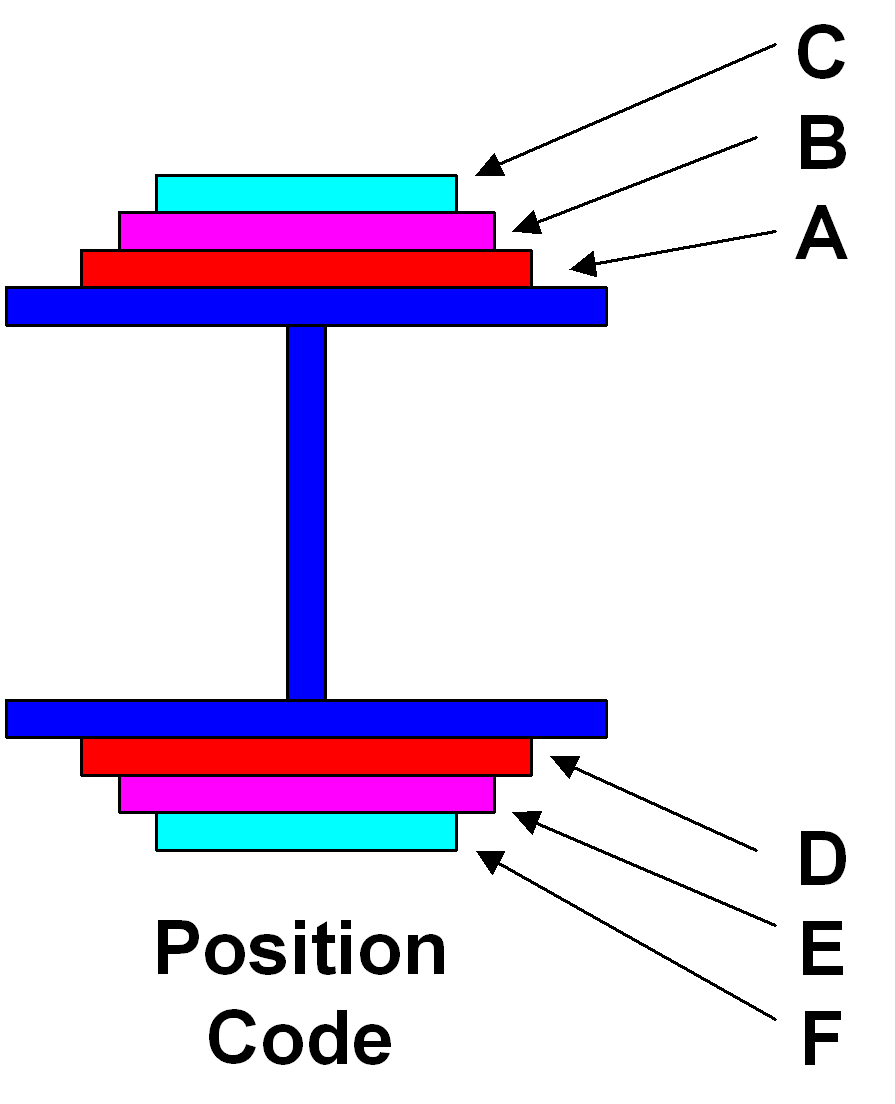

PositCode |
chr |
[A|B|C|D|E|F] Cover Platelocation See Help fole for detail |
|
NegFArea |
real |
IN2 |
Area of fastener holes (sqi) in tension flange |
NegHArea |
real |
IN2 |
Area of hand holes (sqi) |
FastenerDist |
real |
INC |
Distance between fasteners (Default=Plt Width) |
