Input Longitudinal Stiffner Placement
Table tbLongStiffDef
PURPOSE
Add longitudinal stiffeners to a stringer.
Parameters
Field |
Type |
Units |
Description |
|---|---|---|---|
MbrLine |
text |
Member line name |
|
StartDist |
real |
FET |
Distance from start of member line |
EndDist |
real |
FET |
Distance from start of member line to end of this shape placement. (Entry optional) |
Plate |
text |
Plate Library table name |
|
FlngR |
real |

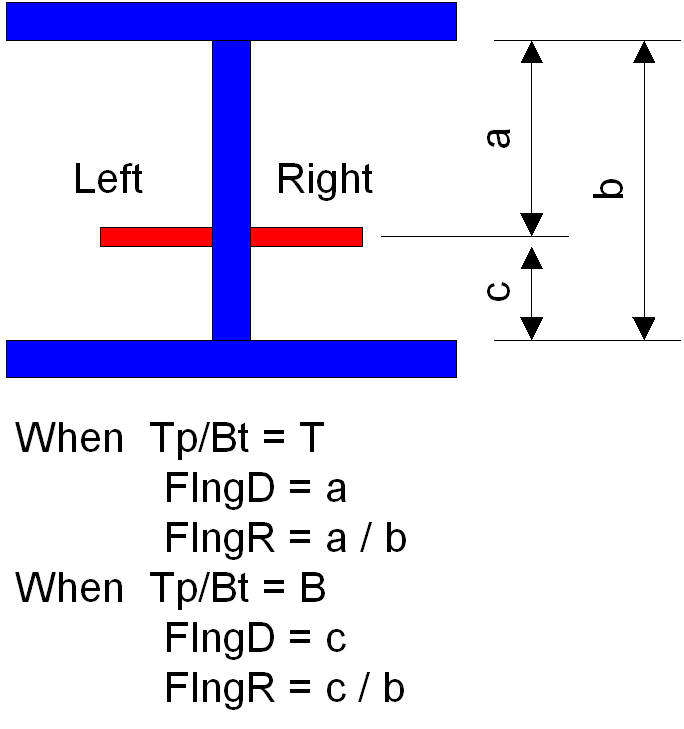

Ratio of depth from reference flange |
|
FlngD |
real |
INC |
Offset distance from reference flange |
Tp_Bt |
chr |
[T|B] Which one is the reference Flange? (T=Top, B=Bottom) |
|
PlLoc |
chr |
[L|R|E] Stiffener plate locater flag (L=left, R=right, E=each) |
|
EffFactor |
real |
Effectiveness factor (default is 0.0) Range is 0.0 to 1.0 |
